Glimmer Hangman (RubyConf 2024 Hack Day App)

During the RubyConf 2024 Hack Day Event for Glimmer DSL for LibUI, which was associated with the RubyConf 2024 workshop "How To Build Basic Desktop Applications in Ruby", I started the implementation of Hangman, the word game, in Ruby as a GUI desktop app. Well, I am happy to announce that I finally worked on it again yesterday and completed it, releasing version 1.0.0! And, it's implemented with some of the most amazing Ruby code! Just install the `glimmer_hangman` Ruby gem and run the command `hangman` and you'll have the game running on your machine instantly!

Project GitHub:

https://github.com/AndyObtiva/glimmer_hangman

Ruby Gem:

https://rubygems.org/gems/glimmer_hangman

I am including the project README and code below.

Merry Christmas!

Project README:

Glimmer Hangman 1.0.0

Glimmer DSL for LibUI Application

Hangman (word game) that runs on Mac, Windows, and Linux. Built with Ruby and Glimmer DSL for LibUI (Prerequisite-Free Ruby Desktop Development Cross-Platform Native GUI Library) using Application Scaffolding.

Implementation started at the RubyConf 2024 Hack Day Event for Glimmer DSL for LibUI, which was connected to the RubyConf 2024 workshop "How To Build Basic Desktop Applications in Ruby".

Setup

Assuming you have Ruby installed (standard MRI / CRuby).

Run:

gem install glimmer_hangman

Usage

Run:

glimmer_hangman

or just:

hangman

The goal of the game is to guess a word by typing letters on the keyboard one by one, with 10 guesses max.

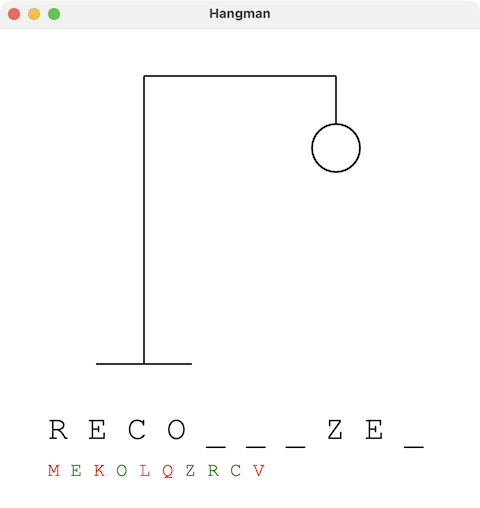

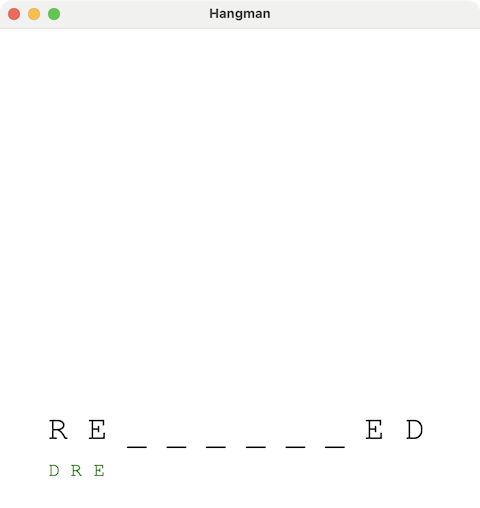

As each letter is typed, the blanks are replaced with letters that gradually reveal the word being guessed if the typed letter is a correct part of the word, with multiple occurrences if any (e.g typing E shows E twice in a word that has it twice like RECOGNIZED).

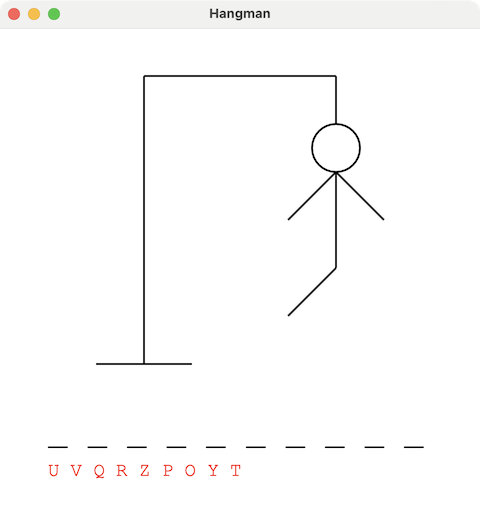

Or otherwise, the drawing at the top shows more parts of the scene of execution by hanging if the typed letter is incorrect.

Also, typed letters show up at the bottom of the screen as green (correct) or (red) incorrect.

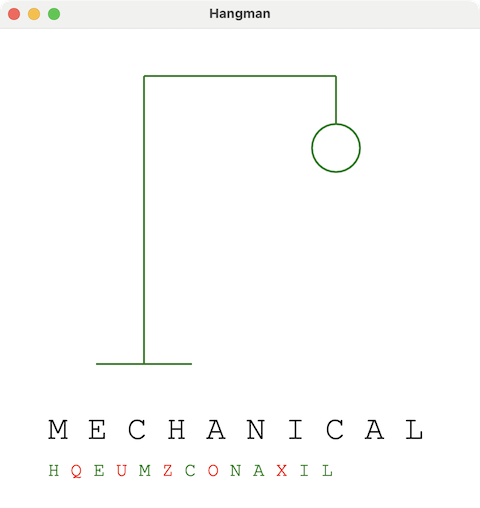

The game is won once the correct word is guessed completely.

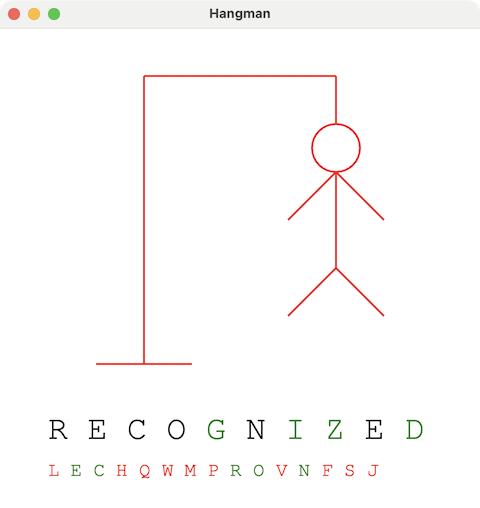

The game is lost once the stick figure is fully hung (10 guessed letters are incorrect).

Restart game by:

• Keyboard Shortcut: CMD+R on Mac or CTRL+R on Windows/Linux
• Menu Item: Game -> Restart

Copyright

MIT

Copyright (c) 2024 Andy Maleh. See LICENSE.txt for further details.

--

Built with Glimmer DSL for LibUI (Prerequisite-Free Ruby Desktop Development Cross-Platform Native GUI Library)

Glimmer Hangman icon made by Freepik from www.flaticon.com

view raw glimmer-hangman-readme.md hosted with ❤ by GitHub

Project Code:

app/glimmer_hangman/model/game.rb

	# Source: https://github.com/AndyObtiva/glimmer_hangman/blob/master/app/glimmer_hangman/model/game.rb
	class GlimmerHangman
	module Model
	class Game
	WORDS_FILE_PATH = File.join(APP_ROOT, './config/words.txt')
	attr_accessor :word, :guess, :guessed_letters, :incorrect_guess_count
	def initialize
	load_words
	restart
	end
	def restart
	self.word = select_random_word
	self.guess = ' ' * self.word.size
	self.incorrect_guess_count = 0
	self.guessed_letters = []
	end
	def guess_letter(letter)
	letter = letter.to_s.downcase
	return if guessed_letters.include?(letter) || won? || lost?
	guessed_letters << letter
	if correct_guess_letter?(letter)
	update_guess_with_newly_guessed_letter(letter)
	else
	self.incorrect_guess_count += 1
	end
	end
	def guessed_letter_at_index?(letter_index)
	guess[letter_index] != ' '
	end
	def correct_guess_letter?(letter)
	word.include?(letter)
	end
	def won?
	guess.chars.count(' ') == 0
	end
	def lost?
	incorrect_guess_count >= word.size
	end
	private
	def load_words
	@words = File.read(WORDS_FILE_PATH).lines.map(&:chomp).map(&:downcase)
	end
	def select_random_word
	shuffle_word_indexes if @word_indexes.nil? || @word_indexes.empty?
	word_index = @word_indexes.pop
	@words[word_index]
	end
	def shuffle_word_indexes
	@word_indexes = @words.size.times.to_a.shuffle
	end
	def update_guess_with_newly_guessed_letter(letter)
	letter_indexes = word.chars.each_with_index.select {|c, i| c == letter }.map(&:last)
	new_guess = guess.dup
	letter_indexes.each { |letter_index| new_guess[letter_index] = letter }
	self.guess = new_guess
	end
	end
	end
	end

view raw glimmer-hangman-model-game.rb hosted with ❤ by GitHub

app/glimmer_hangman/view/hangman.rb

	# Source: https://github.com/AndyObtiva/glimmer_hangman/blob/master/app/glimmer_hangman/view/hangman.rb
	require 'glimmer_hangman/model/game'
	require 'glimmer_hangman/view/hangman_scene'
	require 'glimmer_hangman/view/hangman_guess'
	require 'glimmer_hangman/view/hangman_guessed_letters'
	class GlimmerHangman
	module View
	class Hangman
	include Glimmer::LibUI::Application
	MODIFIER = OS.mac? ? :command : :control
	option :size, default: 480
	attr_reader :game
	before_body do
	@game = Model::Game.new
	menu_bar
	end
	body {
	window {
	content_size size, size
	title 'Hangman'
	resizable false
	area {
	background = rectangle(0, 0, size, size) {
	fill :white
	}
	hangman_scene(game:, size:)
	hangman_guess(game:, size:)
	hangman_guessed_letters(game:, size:)
	on_key_down do |event|
	case event
	in {key: 'a'..'z', modifier: nil, modifiers: []}
	game.guess_letter(event[:key])
	handled = true
	in {key: 'r', modifier: nil, modifiers: [MODIFIER]}
	game.restart
	handled = true
	else
	handled = false
	end
	handled
	end
	}
	}
	}
	private
	def menu_bar
	menu('Game') {
	menu_item('Restart') {
	on_clicked do
	game.restart
	end
	}
	quit_menu_item if OS.mac?
	}
	menu('Help') {
	if OS.mac?
	about_menu_item {
	on_clicked do
	display_about_dialog
	end
	}
	end
	menu_item('About') {
	on_clicked do
	display_about_dialog
	end
	}
	}
	end
	def display_about_dialog
	message = "Hangman #{VERSION}\n\n#{LICENSE}"
	msg_box('About', message)
	end
	end
	end
	end

view raw glimmer-hangman-view-hangman.rb hosted with ❤ by GitHub

app/glimmer_hangman/view/hangman_scene.rb

	# Source: https://github.com/AndyObtiva/glimmer_hangman/blob/master/app/glimmer_hangman/view/hangman.rb
	require 'glimmer_hangman/model/game'
	class GlimmerHangman
	module View
	class HangmanScene
	include Glimmer::LibUI::CustomShape
	option :game
	option :size, default: 480
	option :thickness, default: 2
	body {
	composite_shape(0, 0) {
	content(game, computed_by: [:guess, :incorrect_guess_count]) do
	stroke stroke_color, thickness: thickness
	with_one_incorrect_guess {
	base = line(size*0.2, size*0.7, size*0.4, size*0.7)
	}
	with_one_more_incorrect_guess {
	column = line(size*0.3, size*0.1, size*0.3, size*0.7)
	}
	with_one_more_incorrect_guess {
	ceiling = line(size*0.3, size*0.1, size*0.7, size*0.1)
	}
	with_one_more_incorrect_guess {
	rope = line(size*0.7, size*0.1, size*0.7, size*0.25)
	}
	with_one_more_incorrect_guess {
	head = circle(size*0.7, size*0.25, size*0.05, size*0.1) {
	fill :white
	}
	}
	with_one_more_incorrect_guess {
	torso = line(size*0.7, size*0.3, size*0.7, size*0.5)
	}
	with_one_more_incorrect_guess {
	left_hand = line(size*0.7, size*0.3, size*0.6, size*0.4)
	}
	with_one_more_incorrect_guess {
	right_hand = line(size*0.7, size*0.3, size*0.8, size*0.4)
	}
	with_one_more_incorrect_guess {
	left_leg = line(size*0.7, size*0.5, size*0.6, size*0.6)
	}
	with_one_more_incorrect_guess {
	right_leg = line(size*0.7, size*0.5, size*0.8, size*0.6)
	}
	end
	}
	}
	private
	def stroke_color
	if game.lost?
	:red
	elsif game.won?
	:green
	else
	:black
	end
	end
	def with_one_incorrect_guess(&shape_content)
	@required_incorrect_guess_count = 1
	with_required_incorrect_guess_count(&shape_content)
	end
	def with_one_more_incorrect_guess(&shape_content)
	@required_incorrect_guess_count += 1
	with_required_incorrect_guess_count(&shape_content)
	end
	def with_required_incorrect_guess_count(&shape_content)
	shape_content.call if game.incorrect_guess_count >= @required_incorrect_guess_count
	end
	end
	end
	end

view raw glimmer-hangman-view-hangman-scene.rb hosted with ❤ by GitHub

app/glimmer_hangman/view/hangman_guess.rb

	# Source: https://github.com/AndyObtiva/glimmer_hangman/blob/master/app/glimmer_hangman/view/hangman_guess.rb
	require 'glimmer_hangman/model/game'
	class GlimmerHangman
	module View
	class HangmanGuess
	include Glimmer::LibUI::CustomShape
	option :game
	option :size, default: 480
	option :thickness, default: 2
	option :font_size, default: 33
	body {
	text(size*0.1, size*0.8, size*0.8) {
	default_font family: 'Courier New', size: font_size
	content(game, computed_by: [:guess, :incorrect_guess_count]) do
	game.guess.size.times do |letter_index|
	letter = rendered_letter(letter_index)
	string(letter) {
	color string_color(letter_index)
	}
	string(' ')
	end
	end
	}
	}
	private
	def rendered_letter(letter_index)
	letter = game.lost? ? game.word[letter_index] : game.guess[letter_index]
	letter = '_' if letter == ' '
	letter.upcase
	end
	def string_color(letter_index)
	if game.lost? && !game.guessed_letter_at_index?(letter_index)
	:green
	else
	:black
	end
	end
	end
	end
	end

view raw glimmer-hangman-view-hangman-guess.rb hosted with ❤ by GitHub

app/glimmer_hangman/view/hangman_guessed_letters.rb

	# Source: https://github.com/AndyObtiva/glimmer_hangman/blob/master/app/glimmer_hangman/view/hangman_guessed_letters.rb
	require 'glimmer_hangman/model/game'
	class GlimmerHangman
	module View
	class HangmanGuessedLetters
	include Glimmer::LibUI::CustomShape
	option :game
	option :size, default: 480
	option :thickness, default: 2
	option :font_size, default: 17
	body {
	text(size*0.1, size*0.9, size*0.8) {
	default_font family: 'Courier New', size: font_size
	content(game, :guessed_letters) do
	game.guessed_letters.each do |letter|
	string(letter.upcase) {
	color string_color(letter)
	}
	string(' ')
	end
	end
	}
	}
	private
	def string_color(letter)
	game.correct_guess_letter?(letter) ? :green : :red
	end
	end
	end
	end

view raw glimmer-hangman-view-hangman-guessed-letters.rb hosted with ❤ by GitHub
